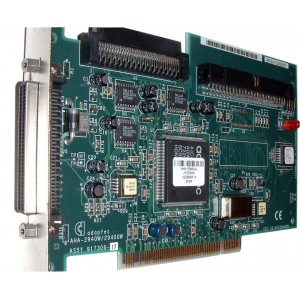

Adaptec AHA-2940UW SCSI Controller PCI Card , 3892B436

Adaptec AHA-2940UW SCSI Controller Card

Description
The AHA-2940 Ultra Wide host adapter is the ideal PCI-to-SCSI host adapter for entry-level servers and workstations. It moves data fast -- up to 40 MByte/sec. And it connects up to 15 SCSI devices for expanded storage capacity. In addition, the AHA-2940 Ultra Wide adapter delivers unrivaled system and peripheral compatibility. Combining UltraSCSI speed and 16-bit wide SCSI data transfers, the AHA-2940 Ultra Wide host adapter moves data on the SCSI bus at a maximum rate of 40 MByte/sec. By increasing the throughput rate between peripherals and the system CPU, the AHA-2940 Ultra Wide adapter accelerates system performance and user productivity. The AHA-2940 Ultra Wide host adapter delivers expanded connectivity to meet the storage capacity requirements of server environments. It supports up to 15 SCSI devices simultaneously. Both 8-bit and 16-bit devices can be configured in any combination for maximum configuration flexibility.

This item is Refurbished pulled from working machine. This item is in stock and can ship today.

Features
Multithreaded I/O (up to 255 tasks simultaneously)
Scatter/gather
Disconnect/reconnect
Tagged command queuing
Synchronous and asynchronous data transfer

System Requirements
N/A

Dimensions
Board Dimensions: 6.87" x 3.87" (17.0 cm x 9.5 cm)

Weight
Product weight: 1lbs.
Shipping weight: 2lbs.

Product Specs
Computer bus: PCI local-bus
Interface Protocol: Bus master DMA
Host Bus Burst Data Rate: 133 MByte/sec
Peripheral Bus: 8-bit and 16-bit Wide UltraSCSI
SCSI Synchronous Data Rate: 40 MByte/sec
SCSI Asynchronous Data Rate: 3.3 MByte/sec
Device Protocol: SCSI-1, SCSI-2, SCSI-3, Wide UltraSCSI
External Connector: 68-pin high-density
Device Support: Up to 15 devices under DOS 5.0 and above
Electrical Termination: Automatic, active, programmable via SCSISelect optimization utility
Plug-and-Play installation

Includes
Only one SCSI Controller Card is included.

Notes
Part Number: AHA-2940UW
UPC Code: 760884128886
Manufacturer: Adaptec

How to convert a PC card to Mac click here

Compatibility
UnixWare 1.x and 2.x
NetWare 3.12, 4.x or later
SCO Unix 3.2.x
IBM OS/2 2.x or later
Microsoft DOS
Microsoft Windows 3.x/95/98, Microsoft Windows NT 3.51 or later
